5、电气特性

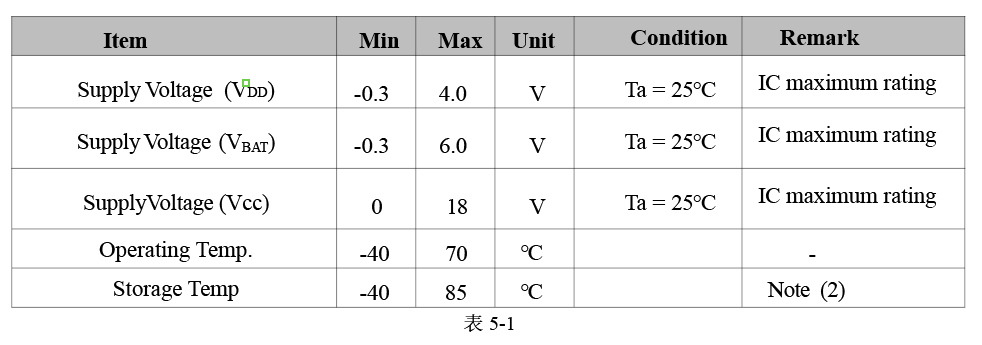

5.1极限参数

Note:

(1)  Maximum ratings are those values beyond which damages to the OLED module may occur.

(2) The defined temperature ranges do not include the polarizer. The maximum withstood temperature of the polarizer should be 80 °C.

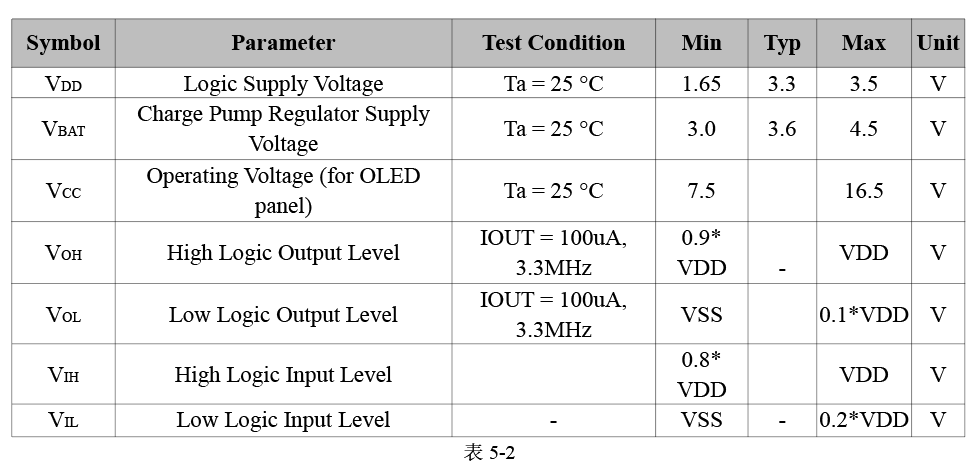

5.2电气规格

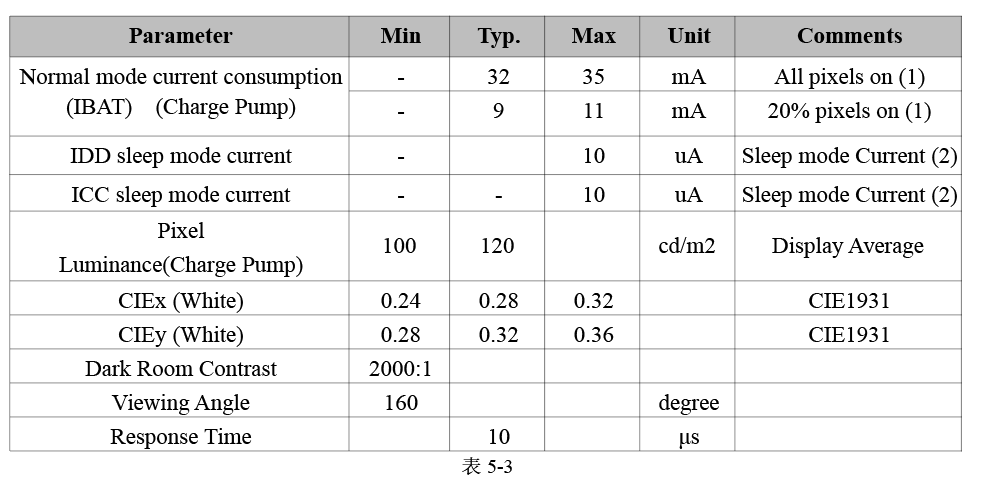

5.3 液晶面板功耗

(1) Normal mode condition : (Charge Pump)

      -  VBAT = 3.6V

     -  Contrast setting : 0XAF

     -  Charge Pump Setting:0x14

     -  Frame rate : 105Hz

     -  Duty setting : 1/64

(2) Sleep mode condition :

      When send 0xae command OLED display off and memory data will be maintained.

(3) Wake up condition :

      When send 0xaf command OLED will be turned on.
