5、电气特性

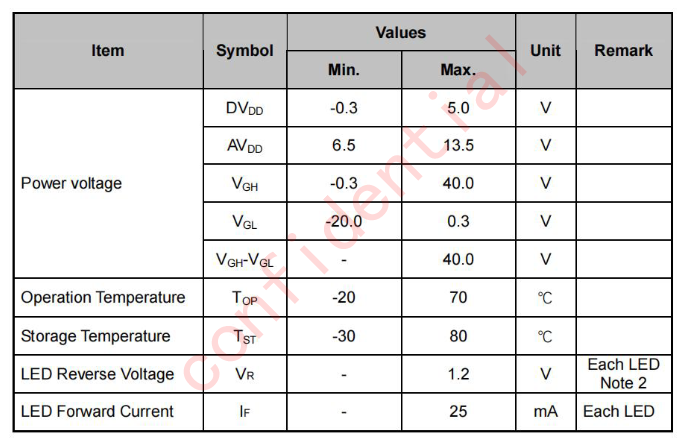

5.1极限参数

Note 1: Be sure to apply DVDD  and VGL to the LCD first, and then apply

VGH.确保先在LCD上应用DVDD和VGL，然后再应用VGH。

Note 2: DVDD setting should match the signals output voltage (refer to Note 3) of customer’s system board.

DVDD设置应与客户系统板的信号输出电压（见注3）相匹配。

Note 3: DCLK,HS,VS,RESET,U/D, L/R,DE,R0~R7,G0~G7,B0~B7,MODE,DITHB.

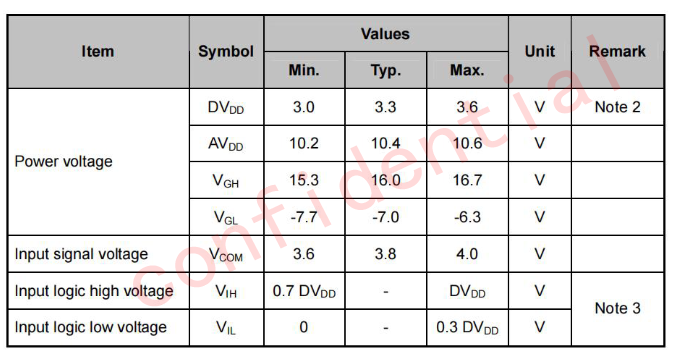

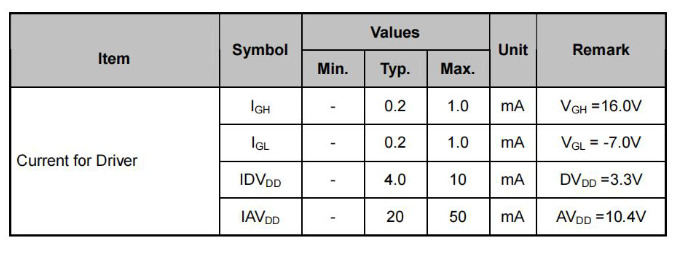

5.2 驱动TFT液晶面板

Note 1: Be sure to apply DVDD  and VGL to the LCD first, and then apply

VGH.确保先在LCD上应用DVDD和VGL，然后再应用VGH。

Note 2: DVDD setting should match the signals output voltage (refer to Note 3) of customer’s system board.

DVDD设置应与客户系统板的信号输出电压（见注3）相匹配。

Note 3: DCLK,HS,VS,RESET,U/D, L/R,DE,R0~R7,G0~G7,B0~B7,MODE,DITHB.

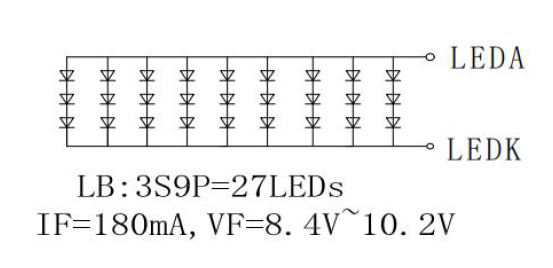

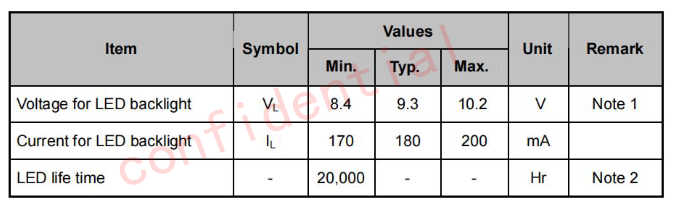

5.3 背光规格

Note 1: The LED Supply Voltage is defined by the number of LED at Ta=25℃ and IL =180mA.

LED电源电压由Ta=25℃和IL =180mA处的LED数量定义。

Note 2: The “LED life time” is defined as the module brightness decrease to 50% original brightness at Ta=25℃ and IL  =180mA. The LED lifetime could be decreased if operating IL is lager than 180mA.

“LED寿命”定义为在Ta=25℃和IL =180mA时，模块亮度降低到原始亮度的50%。如果工作IL小于180 mA，LED寿命可以降低。
